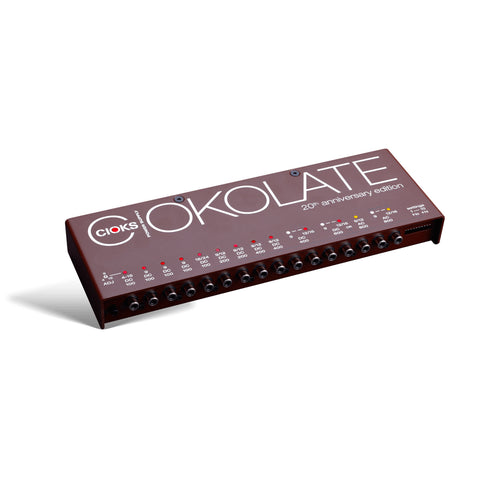

CIOKS Power Supply - CIOKOLATE ‐ 16-output - 12 Isolated Sections
Click image to enlarge

Appearance of new instruments may vary slightly unless Serial Number is listed



CIOKS Power Supply - CIOKOLATE ‐ 16-output - 12 Isolated Sections


$349.00

In Stock - Free Shipping Eligible


The CIOKS CIOKOLATE is a pedboard builders dream come true. Celebrating their 20th, CIOKS pulled out all the stop, combining DC10 and AC10 into one box full and endless power variations.

Specifications:

  • Outlet 1: 4-15V DC / 100mA
  • Outlet 2-4: 9V DC / 100mA each
  • Outlet 5: 18 or 24V DC / 100mA
  • Outlet 6-7: 9 or 12V DC / 200mA each
  • Outlet 8-9: 9 or 12V DC / 400mA each
  • Outlet 10-11: 9 and 12 or 15V DC / 400mA
  • Outlet 12-13: 9 and 12 or 15V DC / 600mA*
  • Outlet 14: 9 or 12V AC / 800mA*
  • Outlet 15-16: 9, 12 or 16V AC / 800mA
  • Size: 292x98x35mm (excl. rubber feet)
  • Weight: 1,6kg
  • Warranty period: 5 years worldwide

Included in the box

  • CIOKS CIOKOLATE power supply
  • Mains power cord
  • 24 Flex cables:
  • Type 1 – black with 5,5/2,1mm centre negative DC plug x12
  • Type 2 – red with 5,5/2,1mm centre positive DC plug x1
  • Type 4 – green with 5,5/2,5mm centre positive DC plug x3
  • Type 5 – black with 3,5mm tip positive Jack plug x2
  • Type 6 – black with 9V battery clip x1
  • Type 7 – blue with 2 pin DIN plug x1
  • Split Flex type 1 – black, powers two pedals of a single outlet x1
  • 3-way Daisy chain Flex type 1 – black, powers three pedals of a single outlet x1
  • Stack Flex type 1 – white/black, adds voltages of two outlets x1
  • Series adapter Flex – white, adds voltages of two outlets x1
  • Pedalboard mounting hardware: two mounting brackets, screws, washers, stand-offs and a hex key
  • Manual
  • Product sheet (drill guide)
  • Flex guide
