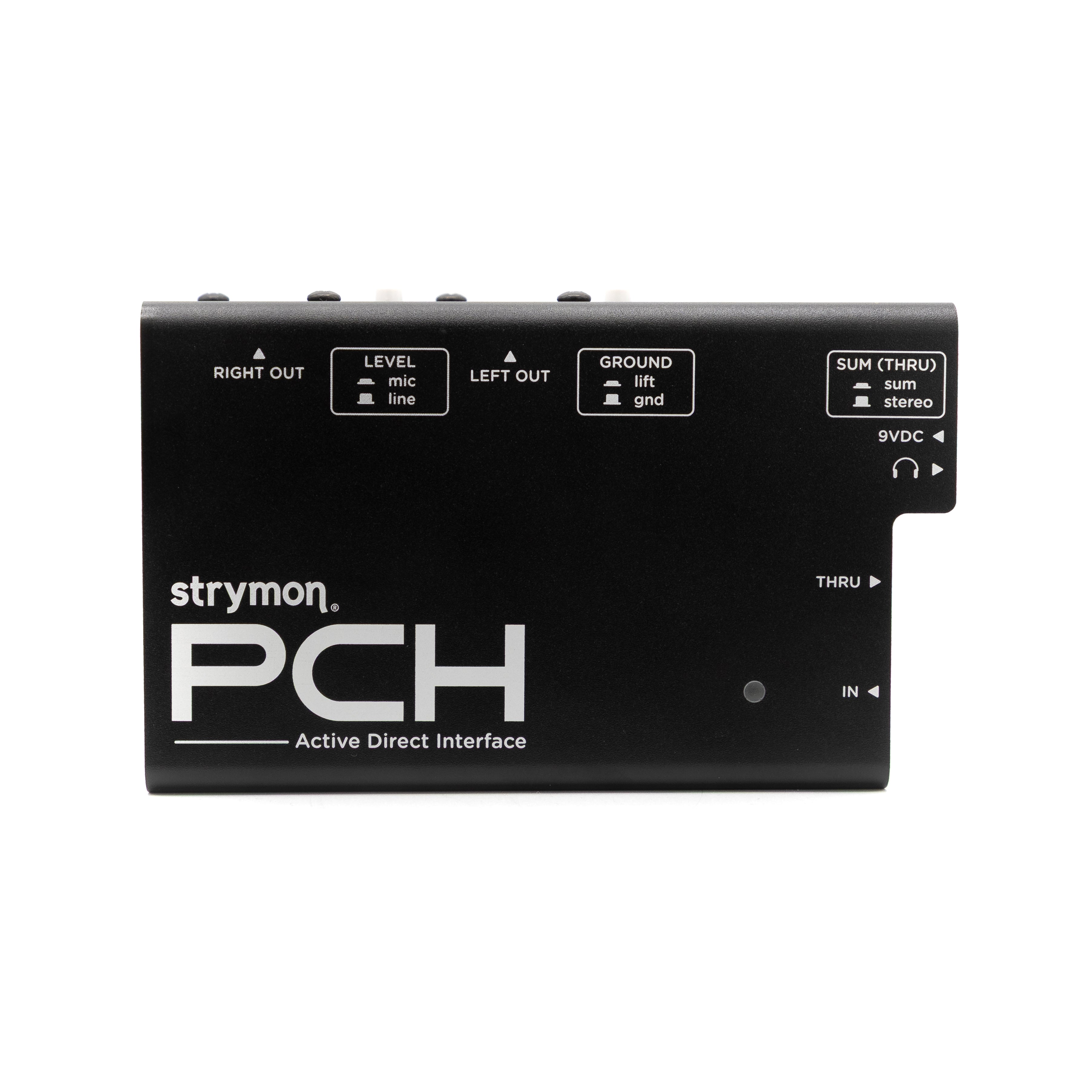

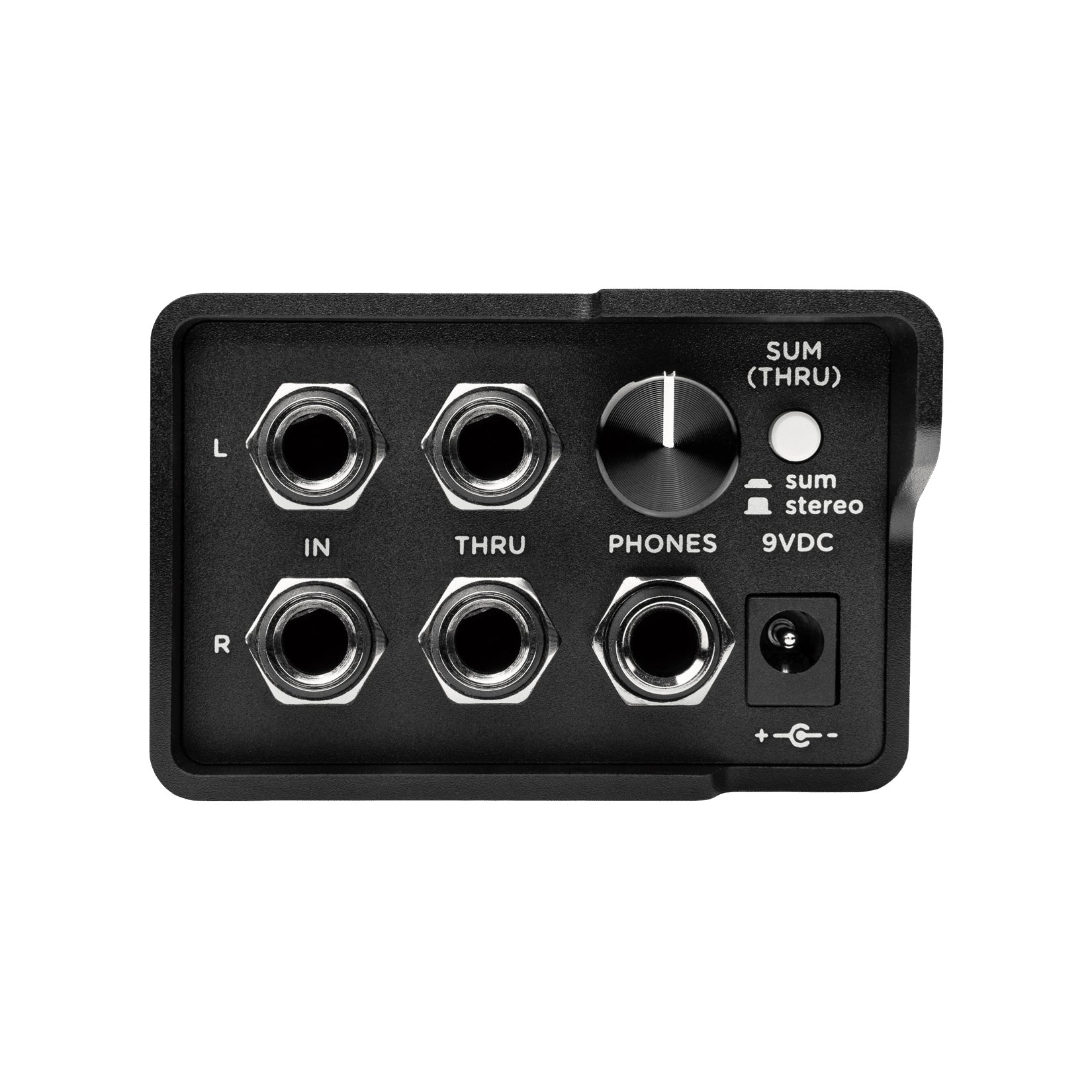

Strymon Effects Pedals - PCH - Active Stereo DI with Headphone Amp

---

$279.00

Default Title - $279.00

In Stock - Free Shipping Eligible

---

The Strymon PCH DI and Headphone amp is versatile utility box to add to the end of your pedalboard that delivers a host of features. First and foremost a stereo DI with XLR outputs along with a pass-thru to send a stereo signal out to an amp. The PCH also allows you to run your rig in a silent stage configuration or to an onstage amp while still feeding front of house your stereo DI signal. Additionally, there's a built-in headphone amplifier which makes this an excellent addition to any pedalboard running an amp modeler.

• Runs on 9VDC — internally converted to 24V to be virtually unclippable
• Onboard headphone amplifier powerful enough to drive high impedance headphones cleanly
• Switchable Mic/Line level operation for the XLR outputs
• Defeatable ground lift for the XLR outputs
• Defeatable Sum for the Thru outputs
• Powered by a custom single-channel internal Ojai power supply
• Internal supply’s custom transformer provides galvanic isolation
• Extremely flat frequency response
• Extremely low total harmonic distortion

In

• Input Impedance: 1 MΩ
• Max Input Level: +20dBu

Thru

• Output Impedance: 100 Ω
• SNR: +135dB (A-Weight)
• Noise Floor: -115dBV (10-22kHz no A-Weight)
• Gain Relative to Inputs: +0dB
• Frequency Response: +/- 0.25dB, 10Hz – 80kHz+

HP

• Output Impedance: 2 Ω
• Frequency Response: +/- 0.25dB, 10Hz – 80kHz

XLR, Line Setting

• Output Impedance: 275 Ω
• SNR: +130dB (A-Weight)
• Noise Floor: -110dBV (10-22kHz no A-Weight)
• Gain Relative to Inputs: +0dB
• Maximum Output Level: +20dBu
• Frequency Response: +/- 0.25dB, 10Hz – 80kHz+

XLR, Mic Setting

• Output Impedance: 100 Ω
• Gain Relative to Inputs: -20dB
• Maximum Output Level: +0.0dBu
• SNR: +125dB
• Noise Floor: -125 dBV (10-22kHz no A-Weight)
• Frequency response: +/- 0.25dB, 10Hz – 80kHz+

Power Supply

• Input Voltage: 9VDC
• Current Requirement: 500mA
