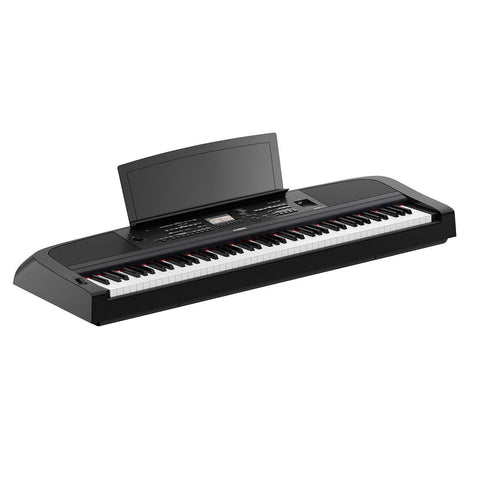

Yamaha Keyboards - DGX670B Digital Piano

---

---

• Width 1,397 mm (55")
• Height 151 mm (5-15/16")
• Depth 445 mm (17-1/2”)
• Weight 21.4 kg (47 lb, 3 oz)
• Control Interface
• Keyboard Number of Keys 88
• Type GHS (Graded Hammer Standard) keyboard with matte black keytops
• Touch Response Hard2 / Hard1 / Medium / Soft1 / Soft2
• Other Controllers Pitch Bend Yes
• Display Type TFT Color WQVGA LCD
• Size 4.3 inch (480 × 272 dots)
• Score Display Function Yes
• Lyrics Display Function Yes
• Text Viewer Function Yes
• Tone Generation Piano Sound Yamaha CFX
• Virtual Resonance Modeling (VRM) Yes
• Key-off Samples Yes
• Smooth Release Yes
• Polyphony Number of Polyphony (Max.) 256
• Audio Recorder/Player Recording Time (max.) 80 minutes / Song
• USB Audio Recorder Playback WAV (44.1 kHz, 16-bit, stereo)
• Recording WAV (44.1 kHz, 16-bit, stereo)
• USB Audio Vocal Cancel Yes
• Pitch Shift Yes
• Time Stretch Yes
• Miscellaneous Piano Room Yes
• Registration Number of Buttons 4
• Control Registration Sequence, Freeze
• Playlist Number of Records 500
• Lesson/Guide Lesson/Guide Follow Lights, Any Key, Karao-Key, Your Tempo
• Overall Controls Metronome Yes
• Tempo Range 5 – 500, Tap Tempo
• Transpose -12 – 0 – +12
• Tuning 414.8 – 440.0 – 466.8 Hz (approx. 0.2 Hz increments)
• Scale Type 9 Types
• USB audio interface 44.1 kHz, 16-bit, stereo
• Bluetooth Yes (Audio)
• Storage Internal Memory Approx. 20 MB
• External Drives USB flash drive
• Connectivity DC IN 16 V
• Headphones Standard stereo phone jack
• Microphone Standard mono phone jack
• AUX IN Yes (Stereo mini jack)
• AUX Pedal Yes
• Pedal Unit Yes
• USB TO DEVICE Yes
• USB TO HOST Yes
• Amplifiers and Speakers
• Amplifiers 6W x 2
• Speakers 12 cm x 2 + 5 cm x 2
• Power Supply
• AC Adaptor PA-300C
• Power Consumption 14.5 W (When using PA-300C AC adaptor)
• Auto Power Off Yes
• Accessories
• Accessories Owner’s Manual, Online Member Product Registration, AC adaptor* (PA-300C), Power cord*, Music rest, Footswitch *May not be included depending on your area. Check with your Yamaha dealer. Separately Sold Accessories Keyboard stand (L-300B / L-300WH), Pedal unit (LP-1B / LP-1WH), AC adaptor (PA-300C), Headphones (HPH-150 / HPH-100 / HPH-50), Foot pedal (FC3A), Footswitch(FC4A / FC5), USB wireless LAN adaptor (UD-WL01), Wireless MIDI adaptor (UD-BT01)
